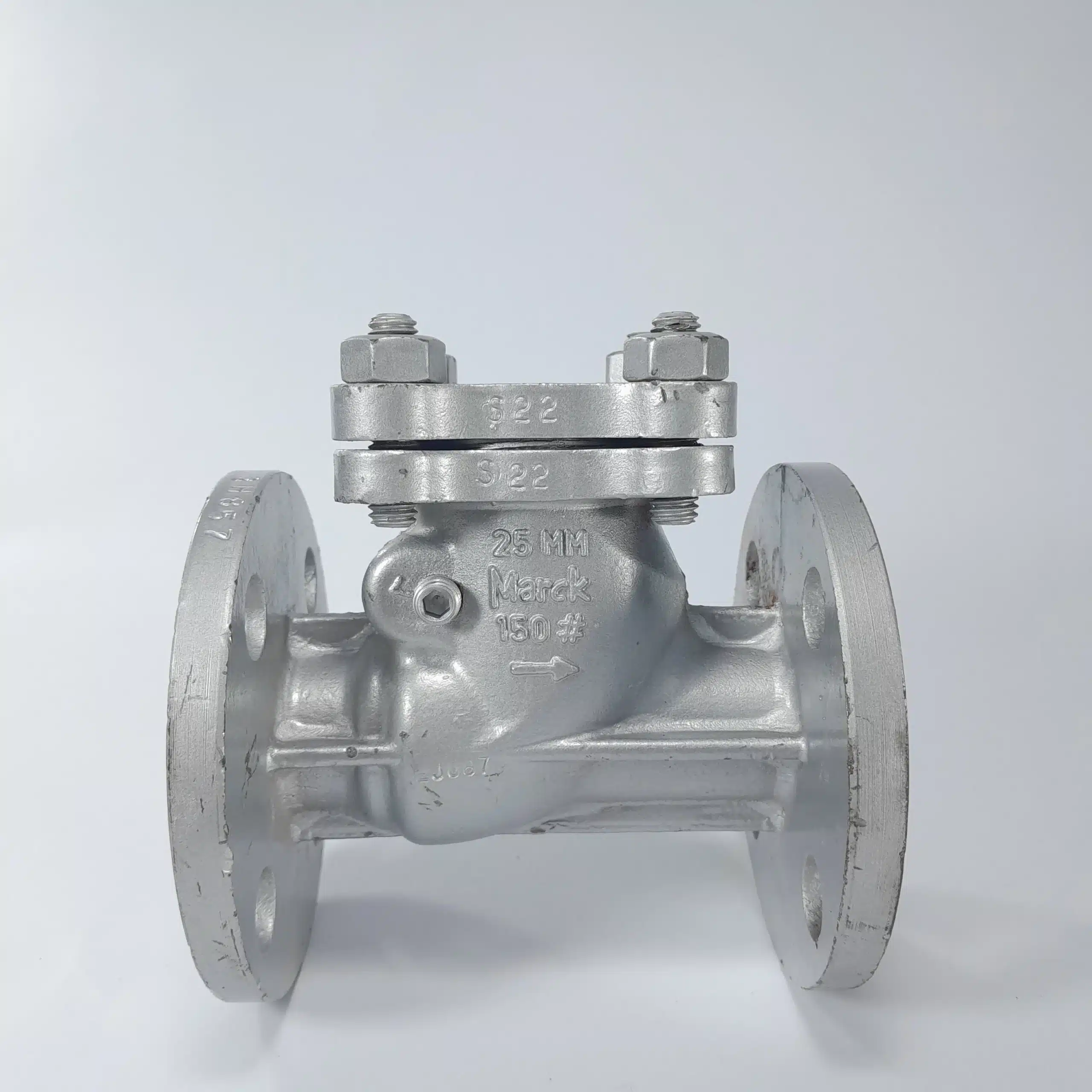

Cast Steel Check / Non Return Valve Class 150#

0.0/5.0 1000 in Stock

₹5069 / Piece excl. GST (18%)

Total ₹5,069 for 1 Pcs

Request Quote

SIZE: 11/4" / 32MM

About This Product

Make- Marck Swing- CF8 Body- WCB Flange ends- Class 150# Seals- PTFE Three piece design Test Pressure (Hydrostatic) : Shell : 31 kg/cm²g (440 psig) Seat : 21kg/cm²g (30 psig) Seat (Steam) : 10.55 kg/cm²g (150 psig) Maximum Working Temperature : 220°C

Categories: Non IBR Boiler Valves , Non IBR Non Return / Check Valves , Non Return / Check Valves
Brand: Non Brand
SKU: 3ba085ea6978

Product description

Lift check valve The lift check valve is a valve which prevents the suction line from running empty, e. g. after the pump has been stopped. Priming the pump prior to a re-start is therefore no longer necessary. Spring-loaded lift check valves can be installed in the piping in almost any mounting position. Compared with swing check valves their head losses, are higher as the deflection of the flow is much more significant. Lift check valves are preferred when applications require smaller nominal diameters. A lift check valve is commonly used in piping systems in which globe valves are being used as a flow control valve. They have similar seating arrangements as globe valves. Lift check valves are suitable for installation in horizontal or vertical lines with upward flow. They are recommended for use with steam, air, gas, water, and on vapor lines with high flow velocities.

FAQs – Cast Steel Check / Non Return Valve Class 150#

1. What is the role of a Cast Steel Check / Non Return Valve Class 150# in a non ibr boiler system?
A Cast Steel Check / Non Return Valve Class 150# is used in a non ibr boiler system to prevent reverse flow, ensuring safe operation and protecting pumps and pipelines from back pressure damage.

2. Is a Cast Steel Check / Non Return Valve Class 150# suitable for steam and water lines in a non ibr boiler application?
Yes, a Cast Steel Check / Non Return Valve Class 150# is ideal for steam, water, and condensate lines in a non ibr boiler, offering reliable sealing and durability under moderate pressure conditions.

3. How does a Cast Steel Check / Non Return Valve Class 150# improve safety in non ibr boiler installations?
A Cast Steel Check / Non Return Valve Class 150# enhances safety in non ibr boiler installations by automatically stopping backflow, reducing the risk of pressure surges and equipment failure.

4. Can a Cast Steel Check / Non Return Valve Class 150# handle industrial operating conditions in a non ibr boiler system?
Yes, a Cast Steel Check / Non Return Valve Class 150# is designed to withstand industrial operating temperatures and pressures, making it a dependable choice for continuous use in a non ibr boiler system.
